FALLOUT SHELTER PLANS 1960s-80s collection (download)

PDF Ebooks

The Loose-Cannon FALLOUT SHELTER PLANS collection is a curated set of the best of cold war and beyond Shelter plans from a variety of U.S. government agencies. Featuring the best plans from FEMA (some from the 1980's even) , as well as farm shelters for people and animals from the U.S.D.A. and many more from the Office of Civil Defense, the Dept. of Defense, the Navy and others. 29 unique plans are featured.

Unlike others, this is not a bunch of junk documents you don't need or want...it instead has just the most helpful shelter designs for those serious about studying what options they have and what type of shelter would work best for their situation— be it a basement shelter, a new construction shelter, above ground-type, earth sheltered with buried roof or even improvised-type shelters—they are all here. Need to shelter 50 cow and your family, we got you covered!

And there is also a bonus collection of documents; manuals and information on shelter equipment, ventilation, waterproofing of underground strucctures, shelter rations studies, and much much more. Overall there is more than 200 MB of key information and Plans.

This PDF collection contains the following documents:

FEMA
H-I 2-1 Outside - Concrete

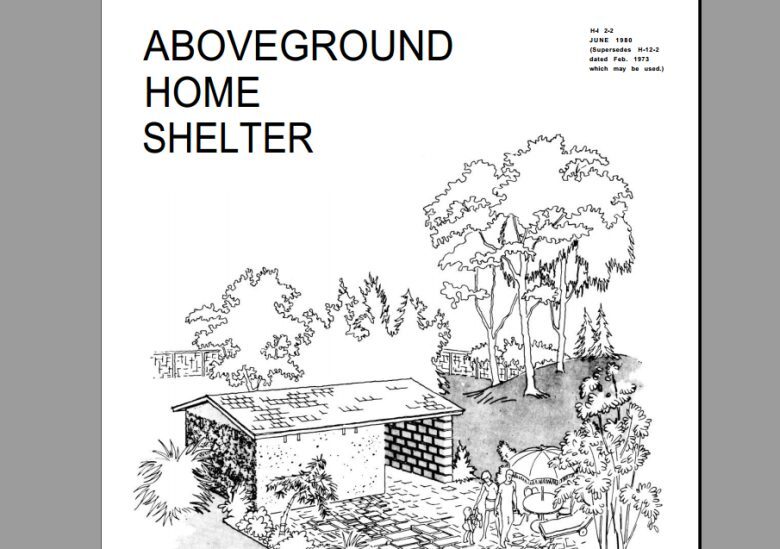

H-I 2-2 Above Ground
H-12 A Modified Ceiling Location - Basement "A"

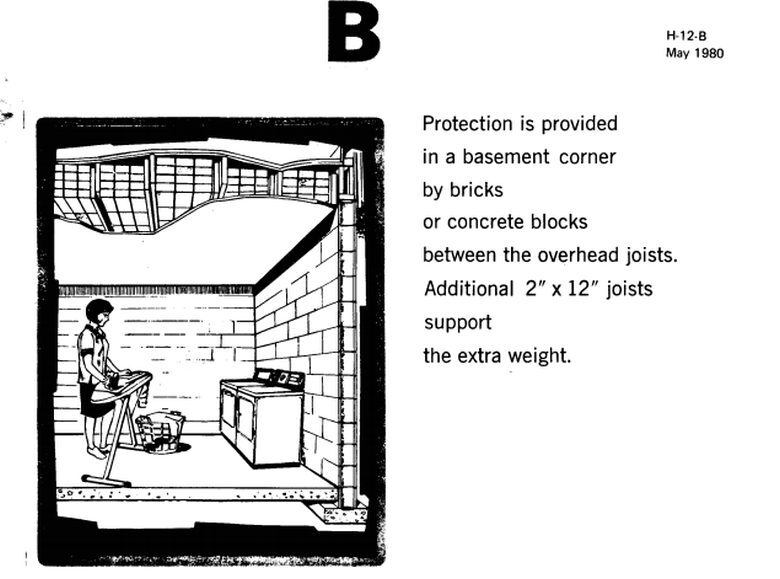

H-12 B Modified Ceiling Location - Basement "B"
H-12 C Concrete Block - Basement
H-12 D Snack bar - Basement
H-12 E Tilt Up Storage Unit - Basement
H-12 F Lean-To Shelter - Basement
H-12 4.0 Home Shelter Masonry Block

Atomic Energy Commission

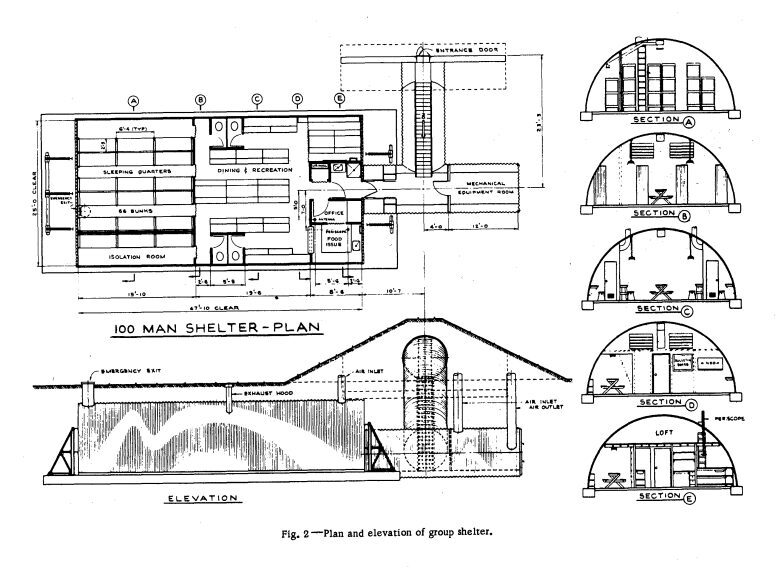

CEX-58.7 AEC Group Shelter

U.S. Dept. of Agriculture
Misc. Pub. 910 Farm Fallout Shelter and Storage
Misc. Pub. 943 Dairy Barn Fallout Shelter
Misc. Pub. 947 Bunker-type Fallout Shelter for Beef cattle
Misc. Pub. 949 Fallout Shelter Stall Barn for 50 cows
Misc. Pub. 948 Fallout Shelter for Six People
Misc. Pub. 950 Storage, Storm, and Fallout Shelter
Misc. Pub. 949 Fallout Shelter...in a Farm Potato Storage

Dept. of Defense
H-7 Family Shelter Designs

U.S. Navy
Tech Report R-191 Design for a Cast-in-Place Concrete Shelter

Office of Civil Defense
MP-15 The Family Fallout Shelter
H-12 Fallout Protection for Home with Basements

Canadian Emergency Measures Org.
Your Basement Fallout Shelter

Bonus documents:

• FEMA Emergency Preparedness Checklist
• FEMA Emergency Preparedness 7-Day Supply Calendar
• FEMA - Preparedness Planning for a Nuclear Crisis
• DOD Shelter Management Textbook
• Human Waste studies in an occupied CD shelter
• Shelter Equipment Planning Guidelines (OCDM)
• Shelter from Fallout (OCDM)
• Storage Stability of Civil Defense Rations (1966 and 1967 reports)
• Ventilation Kit Placement
• Ventilation Tests in Civil Defense shelters in NYC
• Waterproofing Underground Concrete Structures
• Nuclear Survival Manual
• Expedient Shelter Construction and Occupancys Tests (Oak Ridge Lab)
